Colliders

The core components in AICA Studio contain several so-called Collider components that detect whether a specific target pose is inside or outside a virtual geometric object defined around a center pose. This functionality is crucial for many robotic applications because it provides the ability to:

• Avoid collisions by ensuring that robot parts or tools do not enter restricted or hazardous areas;
• Enable safe interaction by detecting when a gripper or end-effector is within a workspace or in contact with an object;
• Trigger context-aware actions such as stopping or slowing down movement, initiating grasping, or sending alerts when a target enters or exits a region.

Each components' name refers to the geometric object that is used to check for collision:

• Box Collider
• Cylinder Collider
• Sphere Collider
• Plane Collider

Interfaces

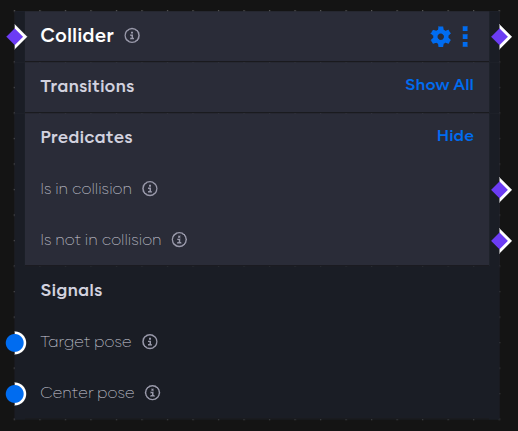

All colliders have the same input signals and predicates, as seen in the image below. The target pose input refers to the Cartesian pose that is checked against the collider region. The center pose input defines the center of the region (the barycenter of the geometric object). The predicate "is in collision" is true whenever the target is within the collider region (or, in the case of the Plane Collider, when the target is below the plane), and conversely the predicate "is not in collision" is true in the opposite case.

Parameters

Additionally, each collider variant may have different parameters that are required to define specific properties. For the following colliders, the parameters define the size and shape of the geometric object.

• Box Collider: the side lengths of the box in the x, y, and z direction
• Cylinder Collider: the radius of the cylinder in the x-y plane and the height in the z direction
• Sphere Collider: the radius of the sphere

For the Plane Collider, the parameter "Flip normal" determines which side of the plane is considered "in collision"; by default, this is when the z position of the target pose is negative in the coordinate system of the center pose.

note

Until collider visualizations are natively integrated in AICA Studio, these examples use RViz to visualize and move the collision targets in space. RViz can be started directly from AICA Launcher.

Box Collider example

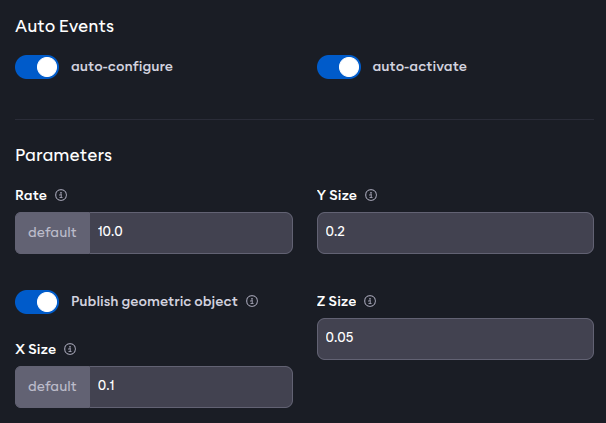

This example uses two Interactive Marker components for the target and center pose of the collider. The Box Collider is parametrized to define a box of dimensions 10 by 20 by 5 centimeters around the center pose. Note that the Publish geometric object flag is also toggled on to generate a visualization in RViz.

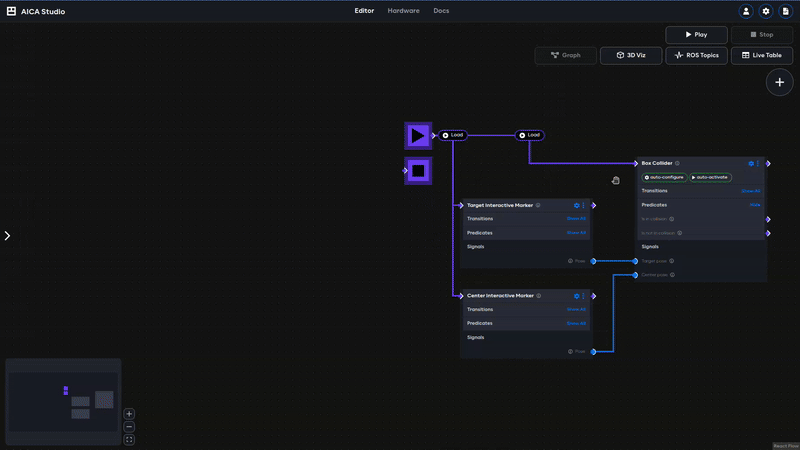

Start the application from AICA Studio, then go to RViz. Add the interactive marker frame and the geometric object marker as shown below. Observe how moving the interactive marker triggers the predicates of the collider component to update when the target pose enters and exits the box.

Application YAML

schema: 2-0-4
dependencies:
  core: v4.4.1
on_start:
  load:
    - component: box_collider
    - component: interactive_marker
    - component: interactive_marker_copy
components:
  box_collider:
    component: aica_core_components::utility::BoxCollider
    display_name: Box Collider
    events:
      transitions:
        on_load:
          lifecycle:
            component: box_collider
            transition: configure
        on_configure:
          lifecycle:
            component: box_collider
            transition: activate
    parameters:
      publish_marker: true
      y_size: 0.2
      z_size: 0.05
    inputs:
      target: /interactive_marker/pose
      center: /interactive_marker_copy/pose
  interactive_marker:
    component: aica_core_components::ros::InteractiveMarker
    display_name: Target Interactive Marker
    parameters:
      frame: target
      initial_pose:
        - !!float 0.0
        - !!float 1.0
        - !!float 0.0
        - !!float 1.0
        - !!float 0.0
        - !!float 0.0
        - !!float 0.0
    outputs:
      pose: /interactive_marker/pose
  interactive_marker_copy:
    component: aica_core_components::ros::InteractiveMarker
    display_name: Center Interactive Marker
    parameters:
      frame: center
      initial_pose:
        - !!float 0.0
        - !!float 0.0
        - !!float 0.0
        - !!float 1.0
        - !!float 0.0
        - !!float 0.0
        - !!float 0.0
      handle_scale: 0.01
    outputs:
      pose: /interactive_marker_copy/pose
graph:
  positions:
    components:
      box_collider:
        x: 660
        y: 60
      interactive_marker:
        x: 160
        y: 180
      interactive_marker_copy:
        x: 160
        y: 440
  edges:
    on_start_on_start_box_collider_box_collider:
      path:
        - x: 360
          y: 40
        - x: 360
          y: 120
    on_start_on_start_interactive_marker_interactive_marker:
      path:
        - x: 140
          y: 40
        - x: 140
          y: 240
    on_start_on_start_interactive_marker_copy_interactive_marker_copy:
      path:
        - x: 140
          y: 40
        - x: 140
          y: 500
    interactive_marker_copy_pose_box_collider_center:
      path:
        - x: 600
          y: 660
        - x: 600
          y: 440

Plane Collider example

Switching from the Box Colldier to the Cyclinder or Sphere Collider components is straightforward. However, it is worth looking at the Plane Collder separately because it is not immediately obvious on which side of the plane the target is in collision with the plane and on which side it is not in collision.

As per the component description, a target pose is considered in collision if it has a negative z coordinate with respect to the center pose. That means, if a table is defined by a Plane Collider and the z axis of the center pose, which corresponds to the normal to the table, points up, the target pose is in collision as soon as it reached (or penetrated) the table.

tip

This behavior can be inverted with the "Flip normal" parameter. The direction of the z axis will be flipped internally.

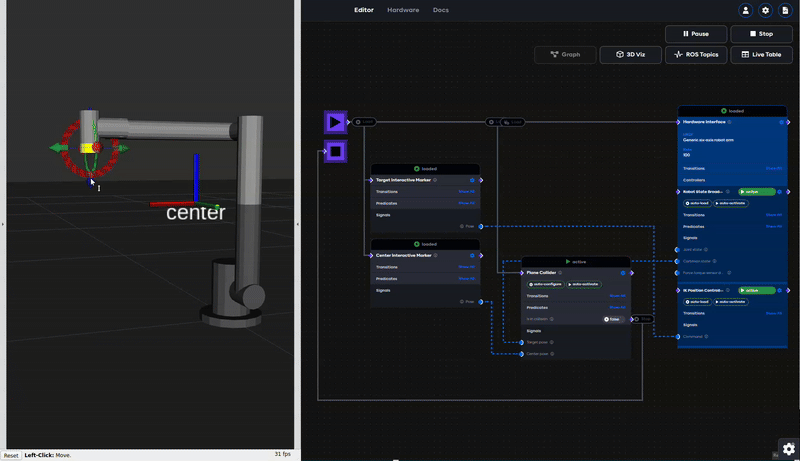

The example below shows an application that is stopped entirely if the robot end-effector collides with the plane. This demonstrates how soft safety mechanisms can be implemented in AICA Studio. As soon as the target pose, which is the end-effector in this case, has a negative z coordinate relative to the center pose, the in collision predicate fires and the application is stopped immediately.

Application YAML

  schema: 2-0-4
  dependencies:
    core: v4.4.1
  on_start:
    load:
      - component: interactive_marker
      - component: interactive_marker_copy
      - component: plane_collider
      - hardware: hardware
  components:
    interactive_marker:
      component: aica_core_components::ros::InteractiveMarker
      display_name: Target Interactive Marker
      parameters:
        frame: target
        initial_frame: tool0
      outputs:
        pose: /interactive_marker/pose
    interactive_marker_copy:
      component: aica_core_components::ros::InteractiveMarker
      display_name: Center Interactive Marker
      parameters:
        frame: center
        initial_pose:
          - 0.1
          - !!float 0.0
          - 0.3
          - !!float 1.0
          - !!float 0.0
          - !!float 0.0
          - !!float 0.0
        handle_scale: 0.01
      outputs:
        pose: /interactive_marker_copy/pose
    plane_collider:
      component: aica_core_components::utility::PlaneCollider
      display_name: Plane Collider
      events:
        predicates:
          is_in_bounds:
            application: stop
        transitions:
          on_load:
            lifecycle:
              component: plane_collider
              transition: configure
          on_configure:
            lifecycle:
              component: plane_collider
              transition: activate
      parameters:
        publish_marker: true
      inputs:
        target: /hardware/robot_state_broadcaster/cartesian_state
        center: /interactive_marker_copy/pose
  hardware:
    hardware:
      display_name: Hardware Interface
      urdf: Generic six-axis robot arm
      rate: 100
      events:
        transitions:
          on_load:
            load:
              - controller: robot_state_broadcaster
                hardware: hardware
              - controller: ik_position_controller
                hardware: hardware
      controllers:
        robot_state_broadcaster:
          plugin: aica_core_controllers/RobotStateBroadcaster
          outputs:
            cartesian_state: /hardware/robot_state_broadcaster/cartesian_state
          events:
            transitions:
              on_load:
                switch_controllers:
                  hardware: hardware
                  activate: robot_state_broadcaster
        ik_position_controller:
          plugin: aica_core_controllers/position/IKPositionController
          inputs:
            command: /interactive_marker/pose
          events:
            transitions:
              on_load:
                switch_controllers:
                  hardware: hardware
                  activate: ik_position_controller
  graph:
    positions:
      components:
        interactive_marker:
          x: 160
          y: 180
        interactive_marker_copy:
          x: 160
          y: 440
        plane_collider:
          x: 680
          y: 500
      hardware:
        hardware:
          x: 1220
          y: -20
    edges:
      on_start_on_start_interactive_marker_interactive_marker:
        path:
          - x: 140
            y: 40
          - x: 140
            y: 240
      on_start_on_start_interactive_marker_copy_interactive_marker_copy:
        path:
          - x: 140
            y: 40
          - x: 140
            y: 500
      on_start_on_start_plane_collider_plane_collider:
        path:
          - x: 600
            y: 40
          - x: 600
            y: 560
      interactive_marker_copy_pose_plane_collider_center:
        path:
          - x: 580
            y: 660
          - x: 580
            y: 880
      plane_collider_is_in_bounds_on_stop_on_stop:
        path:
          - x: 1100
            y: 720
          - x: 1100
            y: 1000
          - x: -20
            y: 1000
          - x: -20
            y: 140
      hardware_hardware_robot_state_broadcaster_cartesian_state_plane_collider_target:
        path:
          - x: 620
            y: 520
          - x: 620
            y: 840
      interactive_marker_pose_hardware_hardware_ik_position_controller_command:
        path:
          - x: 1140
            y: 400
          - x: 1140
            y: 780
